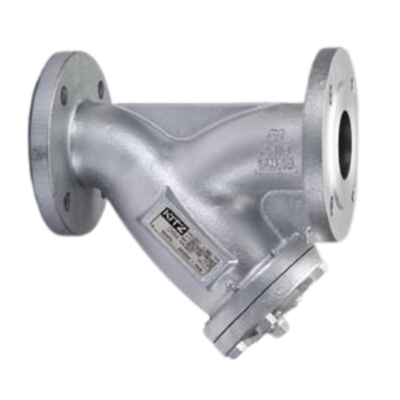

PN16 CAST IRON Y-STRAINER FLANGED ENDS

Related products

• Kitz Valves, Valves

  PN16 CAST IRON GATE VALVE NRS



  Kitz Valves, Valves

  PN16 CAST IRON GATE VALVE NRS

  0 out of 5

  (0)

  Materials

  Parts		Material	Specifications
  Body		Cast Iron	EN-GJL-200
  Bonnet		Cast Iron	EN-GJL-200
  Stem		Forged Brass	JIS H3250 C3771BD or BE
  Disc		Cast Iron	EN-GJL-200
  Disc seat ring		Cast Bronze	JIS H5120 CAC406
  Body seat ring		Cast Bronze	JIS H5120 CAC406
  Gland		Ductile Iron
  Gland Packing		Flexible Graphite + PTFE Braided
  Gasket		Graphite
  Gland bolt/nut		Carbon Steel
  Bonnet bolt/nut		Carbon Steel
  Bonnet Bushing		Cast Bronze	JIS H5120 CAC406
  Hand wheel	DN 50 to 200	Cast Iron
  	DN 250 & 300	Ductile Iron

  Design Specifications

  Items
  Shell wall thickness	KITZ Standard
  Face-to-face or End-to-end dimensions	EN 1171 PN16 Basic Series 3
  End Connection	EN 1092-2 PN16

  Dimensions

  Valve Size	inch	2	2 1/2	3	4	5	6	8	10	12
  	DN	50	65	80	100	125	150	200	250	300
  LFace-to-face		178	190	203	229	254	267	292	330	356
  H Height		271	297	352	394	451	518	618	760	867
  D Handwheel Diameter		180	180	200	250	280	300	350	400	450

  SKU: KITZ FIG 16FCW

  685.00 AED – 8,010.00 AED

  Select options

  This product has multiple variants. The options may be chosen on the product page
• Kitz Valves, Valves

  PN16 BRONZE GATE VALVE



  Kitz Valves, Valves

  PN16 BRONZE GATE VALVE

  0 out of 5

  (0)

  Materials

  Parts	Material
  Body	Brass
  Bonnet	Brass
  Stem	Dezincification Resistant Brass
  Disc	Brass
  Gland Packing	Aramid Fibers Graphite

  Dimensions



  Nominal Size	inch	1/2	3/4	1	1 1/4	1 1/2	2
  	DN	15	20	25	32	40	50
  L Threaded end to end		42	47	50	60	63	72
  H Height, valve open		73	87	97	118	126	154
  D Handwheel diam		50	55	60	70	80	90

  SKU: n/a

  40.00 AED – 185.00 AED

  Select options

  This product has multiple variants. The options may be chosen on the product page
• Kitz Valves, Valves

  PN16 CAST IRON SWING CHECK VALVE FLANGED ENDS



  Kitz Valves, Valves

  PN16 CAST IRON SWING CHECK VALVE FLANGED ENDS

  0 out of 5

  (0)

  Materials

  Parts		Material	Specifications
  		EN16 FCO	EN16FCOM
  Body			Cast Iron	EN-GJL-200
  Cover			Cast Iron	EN-GJL-200
  Hinge pin		Stainless steel	ASTM A276 Type403	ASTM A276 Type316
  Disc	DN 50 to 100	Stainless Steel	JIS H5120 CAC406	ASTM A276 Type316
  	DN 125 to 300	Cast Iron	EN-GJL-200
  Disc seat ring		Cast Bronze	JIS H5120 CAC406	ASTM A182 Gr.F316
  Body seat ring		Cast Bronze	JIS H5120 CAC406	ASTM A182 Gr.F316
  Arm		Stainless steal	ASTM A351 Gr.CF8
  Gasket		Graphite
  Cover bolt/nut		Carbon Steel
  Plug		Carbon Steel

  Deisgn Specifications

  Items
  Shell wall thickness	KITZ Standard
  Face-to-face or End-to-end dimensions	EN 558 PN16 Basic Series 10
  End Connection	EN 1092-2 PN16

  Dimensions



  Valve Size	inch	2	2 1/2	3	4	5	6	8	10	12
  	DN	50	65	80	100	125	150	200	250	300
  L Face-to-face		203	216	241	292	330	356	495	622	698
  H Height		111	121	145	165	207	225	268	315	356

  SKU: KITZ FIG 16FCO

  642.00 AED – 8,760.00 AED

  Select options

  This product has multiple variants. The options may be chosen on the product page
• FGV Valves, Valves

  Non Return Valve Metal seat PN16 DI Body Metal Seat FBE Coated



  FGV Valves, Valves

  Non Return Valve Metal seat PN16 DI Body Metal Seat FBE Coated

  0 out of 5

  (0)

  SKU: n/a

  496.00 AED – 2,905.00 AED

  Select options

  This product has multiple variants. The options may be chosen on the product page
