PN16 CAST IRON GLOBE VALVE FLANGED ENDS

Related products

• Valves

  PN16 CAST IRON GATE VALVE RISING STEM, FLANGED ENDS TO PN16



  Valves

  PN16 CAST IRON GATE VALVE RISING STEM, FLANGED ENDS TO PN16

  0 out of 5

  (0)

  Materials

  Parts	Material	Specifications
  		EN16 FCL	EN16FCLM
  Body	Cast Iron	EN-GJL-200
  Bonnet	Cast Iron	EN-GJL-200
  Stem	Forged Brass	JIS H3250 C3771BD or BE	ASTM A276 Type316
  Disc	Cast Iron	EN-GJL-200
  Disc seat ring	Cast Bronze	JIS H5120 CAC406	ASTM A182 Gr.F316
  Body seat ring	Cast Bronze	JIS H5120 CAC406	ASTM A182 Gr.F316
  Gland	Ductile Iron
  Gland Packing	Flexible Graphite + PTFE Braided
  Gasket	Graphite
  Gland bolt/nut	Carbon Steel
  Bonnet bolt/nut	Carbon Steel
  Yoke sleeve	Cast Bronze
  Hand wheel	Cast Iron

  Design Specifications

  Items
  Shell wall thickness	KITZ Standard
  Face-to-face or End-to-end dimensions	EN 1171 PN16 Basic Series 3
  End Connection	EN 1092-2 PN16

  Dimensions



  Valve Size	inch	2	2 1/2	3	4	5	6	8	10	12
  	DN	50	65	80	100	125	150	200	250	300
  LFace-to-face		178	190	203	229	254	267	292	330	356
  H Height(OPEN)		343	389	462	547	648	759	956	1168	1363
  D Handwheel Diameter		170	170	200	250	280	300	350	400	450

  SKU: KITZ FIG 16FCL

  765.00 AED – 4,380.00 AED

  Select options

  This product has multiple variants. The options may be chosen on the product page
• Valves

  Low Resistance Non-Return Backflow Preventer (Flanged Type)



  Valves

  Low Resistance Non-Return Backflow Preventer (Flanged Type)

  0 out of 5

  (0)

  SKU: Backflow Preventer

  3,225.00 AED – 34,085.00 AED

  Select options

  This product has multiple variants. The options may be chosen on the product page
• Valves

  TYPE 600 BRASS BALL VALVE ( NPT ENDS )



  Valves

  TYPE 600 BRASS BALL VALVE ( NPT ENDS )

  0 out of 5

  (0)

  Materials

  Parts	Material
  Body	Brass/Bronze*
  Body cap	Brass/Bronze*
  Stem	Brass: Nickel plated*
  Ball	Brass: chrome free plated (Size 1/4 to 3) Brass: chrome plated (Size 4)
  Ball seat	PTFE
  O-ring	FKM

  Dimensions



  Nominal Size	inch	1/4	3/8	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4
  	mm	8	10	15	20	25	32	40	50	65	80	100
  L Threaded end to end		42	42	53	60	72	84	92	110	138	167	193
  L1Solder		–	46	54	73	88	100	115	140	164	187	–
  H Height		37	37	40	43	50	55	65	72	100	112	131
  H1Solder		–	37	40	44	50	55	65	72	100	112	–
  DLength of Handle		70	70	80	80	110	110	150	150	200	300	300

  SKU: KITZ FIG : AKSZA

  23.00 AED – 930.00 AED

  Select options

  This product has multiple variants. The options may be chosen on the product page
• Valves

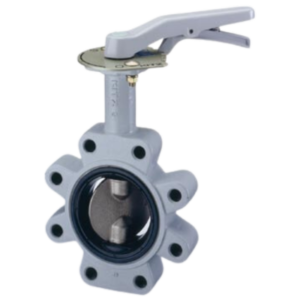

  PN16 DUCTILE IRON BUTTERFLY VALVE LUG TYPE



  Valves

  PN16 DUCTILE IRON BUTTERFLY VALVE LUG TYPE

  0 out of 5

  (0)

  Dimensions

  Nominal Size		d	H	H1	H2	L	D	C	D1
  inch	mm
  2	50	50	191	147	67	43	90	125	180
  2 1/2	65	65	199	155	75	46	104	145	180
  3	80	80	217	173	91	46	124	160	180
  4	100	100	227	183	101	52	146	180	180
  5	125	125	265	211	127	56	176	210	230
  6	150	150	277	223	139	56	206	240	230
  8	200	197	295	248	169	60	257	295	350

  SKU: KITZ FIG PN16DJLUE

  260.00 AED – 14,190.00 AED

  Select options

  This product has multiple variants. The options may be chosen on the product page
