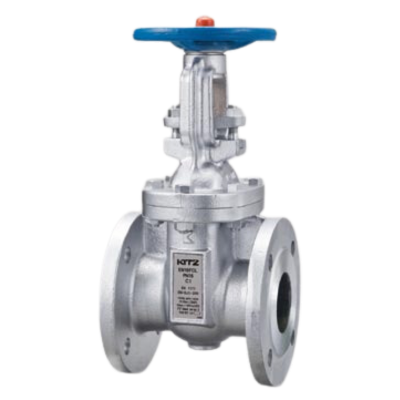

PN16 CAST IRON GATE VALVE RISING STEM, FLANGED ENDS TO PN16

Related products

• Valves

  PN16 CAST IRON WAFER CHECK VALVE



  Valves

  PN16 CAST IRON WAFER CHECK VALVE

  0 out of 5

  (0)

  Materials

  Parts	Material	ASTM Spec
  		PN16FWNBM	PN16FWNBME
  Body	Cast Iron	A126 CL.B
  Seat*	Rubber	NBR	EPDM
  Disc*	Stainless steel	A351 Gr.CF8M
  Pin	Stainless steel	A276 Type 304
  Plug	Stainless steel	A276 Type 304
  Spring	Stainless steel	A313 Type 316

  Deisgn Specifications

  Items
  Shell wall thickness	KITZ Standard
  Face-to-face or End-to-end dimensions	KITZ Standard
  End Connection	Wafer type(EN1092 PN16)

  Dimensions



  Valve Size	inch	2	2 1/2	3	4	5	6	8	10	12
  	DN	50	65	80	100	125	150	200	250	300
  L		54	54	57	64	70	76	95	108	143
  D		109	129	144	164	194	220	275	331	386
  d1		60	73	89	114	141	168	219	273	324
  d		55	68	82	112	134	163	207	263	305

  SKU: KITZ FIG PN16FWNBME

  431.00 AED – 2,625.00 AED

  Select options

  This product has multiple variants. The options may be chosen on the product page
• Valves

  PN16 DUCTILE IRON BUTTERFLY VALVE LUG TYPE



  Valves

  PN16 DUCTILE IRON BUTTERFLY VALVE LUG TYPE

  0 out of 5

  (0)

  Dimensions

  Nominal Size		d	H	H1	H2	L	D	C	D1
  inch	mm
  2	50	50	191	147	67	43	90	125	180
  2 1/2	65	65	199	155	75	46	104	145	180
  3	80	80	217	173	91	46	124	160	180
  4	100	100	227	183	101	52	146	180	180
  5	125	125	265	211	127	56	176	210	230
  6	150	150	277	223	139	56	206	240	230
  8	200	197	295	248	169	60	257	295	350

  SKU: KITZ FIG PN16DJLUE

  260.00 AED – 14,190.00 AED

  Select options

  This product has multiple variants. The options may be chosen on the product page
• Valves

  PN16 BRONZE SWING CHECK VALVE



  Valves

  PN16 BRONZE SWING CHECK VALVE

  0 out of 5

  (0)

  Materials

  Parts	Material
  Body	Bronze
  Cap	Brass
  Hinge pin	Brass
  Disc	Brass
  Gland Packing	Aramid Fibers Graphite

  Dimensions

  Nominal Size	inch	1/2	3/4	1	1 1/4	1 1/2	2
  	mm	15	20	25	32	40	50
  L Threaded end to end		60	70	80	92	102	122
  H Height		39	45	52	62	67	79

  SKU: n/a

  32.00 AED – 252.00 AED

  Select options

  This product has multiple variants. The options may be chosen on the product page
• Valves

  Low Resistance Non-Return Backflow Preventer (Flanged Type)



  Valves

  Low Resistance Non-Return Backflow Preventer (Flanged Type)

  0 out of 5

  (0)

  SKU: Backflow Preventer

  3,225.00 AED – 34,085.00 AED

  Select options

  This product has multiple variants. The options may be chosen on the product page
